DataGrid Example – Part 1

Author posted by Jitendra on Posted on under category Categories ASP.NET and tagged as Tags , with 1 Comment on DataGrid Example – Part 1

For the basics of DataGrid please refer this post: http://JitendraZaa.com/blog/?p=188

In this example, i will explain the basics of DataGrid control like Theming, Databinding etc.

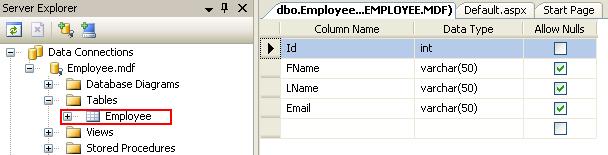

We will start our example with creating the SQL Express database of Employee which will contain the following fields : Id, FName, LName, Email.

Now create a stored procedure to insert the data into Table.

CREATE PROCEDURE dbo.AddEmployee
@FName varchar(50),
@LName varchar(50),
@Email varchar(50)
AS
INSERT INTO Employee (FName,LName,Email) values (@FName,@LName,@Email)

In ASPX page, write the code to input the Employee information.

First Name : <asp:TextBox ID="txtFName" runat="server"/><br />
Last Name :<asp:TextBox ID="txtLName" runat="server"/><br />
Email :<asp:TextBox ID="txtEmail"; runat="server"/><br />
<asp:Button ID="btnSubmit" Text="Add Record" runat="server" OnClick="btnSubmit_Click"/>

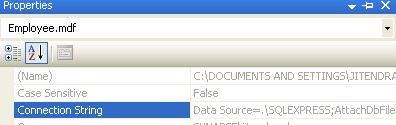

Go to the property of Employee.mdf and select connection string as shown in below image.

On the click event of the button write below function:

string conString = @"Data Source=.SQLEXPRESS;AttachDbFilename=""|DataDirectory|Employee.mdf"";Integrated Security=True;User Instance=True";
protected void btnSubmit_Click(object sender, EventArgs e)
{
SqlConnection con = null;
SqlCommand cmd = null;
try {
con = new SqlConnection(conString);
     con.Open();
     cmd = new SqlCommand("AddEmployee", con);
     cmd.CommandType = CommandType.StoredProcedure;
     cmd.Parameters.AddWithValue("@FName", txtFName.Text);
     cmd.Parameters.AddWithValue("@LName", txtLName.Text);
     cmd.Parameters.AddWithValue("@Email", txtEmail.Text);
     cmd.ExecuteNonQuery();
     showConfirmationMessage();
}
catch (CustomException ex) {
ex.logException();
}finally{
    con.Close();
}
}
 private void showConfirmationMessage()
{
      ClientScriptManager csMngr = Page.ClientScript;
      csMngr.RegisterStartupScript(Page.GetType(), "Success", "alert('Record Added succesfully');", true);
}

ASPX Code for data grid

<asp:DataGrid ID="grdEmp" runat="server">
<HeaderStyle CssClass="Header" />
<AlternatingItemStyle CssClass="AlternateItemStyle" />
</asp:DataGrid>

Write below code to bind the data into DataGrid.

private void bindData()
{
SqlConnection con = null;
SqlDataAdapter adp = null;
try
{
con = new SqlConnection(conString);
con.Open();
adp = new SqlDataAdapter("Select * from Employee",con);
DataSet ds = new DataSet();
adp.Fill(ds);
grdEmp.DataSource = ds;
grdEmp.DataBind();
}
catch (CustomException ex)
{
ex.logException();
}finally{
con.Close();
}
}

Final output:

Download Code
