How to create S-Control in Salesforce

Author posted by Jitendra on Posted on under category Categories Salesforce and tagged as Tags with 7 Comments on How to create S-Control in Salesforce

Explains that how to create a S-Control in

To demonstrate this, lets consider an example of Google Map.

Lets create a S-Control for the Google Map.

Now let’s first create a new S-Control:

  1. Click on “Setup” which is located on the top right corner of the page.

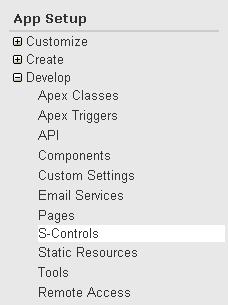

  2. Expand “Develop” item and click on “S-Controls”
  3. Hit “New Custom S-Control”
  4. Provide a Label “Google Map” and a description is you wished to
  5. The Type should be HTML since we want to create a HTML, Google API mash up
  6. Now it is time to enter the code for the S-Control
S-Control in
<html xmlns="" xmlns:v="urn:schemas-microsoft-com:vml">
<meta http-equiv="content-type" content="text/html; charset=utf-8" />
<title>Google Maps JavaScript API Example: Advanced Directions</title>
<link href="/dCSS/Theme2/default/common.css" type="text/css" media="handheld,print,projection,screen,tty,tv"
<link href="/dCSS/Theme2/default/custom.css" type="text/css" media="handheld,print,projection,screen,tty,tv"

<script src=";v=2.x&amp;key={YOUR KEY}"

<script src="/js/functions.js" type="text/javascript"></script>

<script type="text/javascript" src="/soap/ajax/13.0/connection.js"></script>

<style type="text/css">
body {
font-family: Verdana, Arial, sans serif;
font-size: 11px;
margin: 2px;
table.directions th {

img {
color: #000000;

<script type="text/javascript">

var map;
var gdir;
var geocoder = null;
var addressMarker;
var dirFrom = '{!$Request.from}';
var dirTo = '{!$}';
var mapLocale = ""
var SControlID = '{!$Request.lid}';
var SFrameIC = '{!$Request.ic}';

function initValues()
mapLocale = "en_US";


function setInputFields(from, to)
window.document.getElementById("fromAddress").value = from;
window.document.getElementById("toAddress").value = to;

function initialize()

if (GBrowserIsCompatible()) {
map = new GMap2(document.getElementById("map_canvas"));
map.addControl(new GSmallMapControl());
map.addControl(new GMapTypeControl());
gdir = new GDirections(map, document.getElementById("directions"));
GEvent.addListener(gdir, "load", onGDirectionsLoad);
GEvent.addListener(gdir, "error", handleErrors);

setDirections(dirFrom, dirTo, mapLocale);

function setDirections(fromAddress, toAddress, locale) {
if ((fromAddress) && (toAddress))
gdir.load("from: " + fromAddress + " to: " + toAddress,
{ "locale": locale });

function handleErrors()
if (gdir.getStatus().code == G_GEO_UNKNOWN_ADDRESS)
alert("No corresponding geographic location could be found for one of the specified addresses. This may be due to the fact that the address is relatively new, or it may be incorrect.nError code: " + gdir.getStatus().code);
else if (gdir.getStatus().code == G_GEO_SERVER_ERROR)
alert("A geocoding or directions request could not be successfully processed, yet the exact reason for the failure is not known.n Error code: " + gdir.getStatus().code);

else if (gdir.getStatus().code == G_GEO_MISSING_QUERY)
alert("The HTTP q parameter was either missing or had no value. For geocoder requests, this means that an empty address was specified as input. For directions requests, this means that no query was specified in the input.n Error code: " + gdir.getStatus().code);

// else if (gdir.getStatus().code == G_UNAVAILABLE_ADDRESS) <--- Doc bug... this is either not defined, or Doc is wrong
// alert("The geocode for the given address or the route for the given directions query cannot be returned due to legal or contractual reasons.n Error code: " + gdir.getStatus().code);

else if (gdir.getStatus().code == G_GEO_BAD_KEY)
alert("The given key is either invalid or does not match the domain for which it was given. n Error code: " + gdir.getStatus().code);

else if (gdir.getStatus().code == G_GEO_BAD_REQUEST)
alert("A directions request could not be successfully parsed.n Error code: " + gdir.getStatus().code);

else alert("An unknown error occurred.");


function onGDirectionsLoad(){
// Use this function to access information about the latest load()
// results.

// e.g.
// document.getElementById("getStatus").innerHTML = gdir.getStatus().code;
// and yada yada yada...

<body onload="initialize()" onunload="GUnload()">
<div style="background-color: #CCCCCC">
<form action="#" onsubmit="setDirections(this.from.value,, this.locale.value); return false">
<th align="right">
<input type="text" size="25" id="fromAddress" name="from" value="" /></td>
<th align="right">
<td align="right">
<input type="text" size="25" id="toAddress" name="to" value="" /></td>
<th align="right">
<th align="right">
<select id="locale" name="locale">
<option value="en" selected="selected">English</option>
<option value="fr">French</option>
<option value="de">German</option>
<option value="ja">Japanese</option>
<option value="es">Spanish</option>
<input name="submit" type="submit" value="Get Directions!" /></td>
<div style="border-width: 1px; border-color: #000000; border-style: solid;">
<div style="overflow: auto; width: 99.5%; height: 380px">
<table class="directions" style="width: 100%; height: 100%">
<td valign="top" style="width: 275px;">
<div id="directions" style="width: 275px; background-color: #ffffff;">
<td valign="top">
<div id="map_canvas" style="width: 100%; height: 375px; background-color: #ffffff;">
